KriegerSonic
NC5-18-9149
STC Rating
49
Seal
1
NC5
Recommeded Max. V/L Area
CALL
Threshold
ALUM. or S.S.
TEST REPORT DATA
Report |
100 |
125 |
160 |
200 |
250 |
315 |
400 |
500 |
630 |
800 |
1000 |
1250 |
1600 |
2000 |
2500 |
3150 |
4000 |
5000 |
TL91-208 |
32 | 35 | 39 | 41 | 41 | 40 | 43 | 45 | 49 | 50 | 50 | 51 | 52 | 53 | 53 | 49 | 51 | 53 |
CAD DRAWINGS

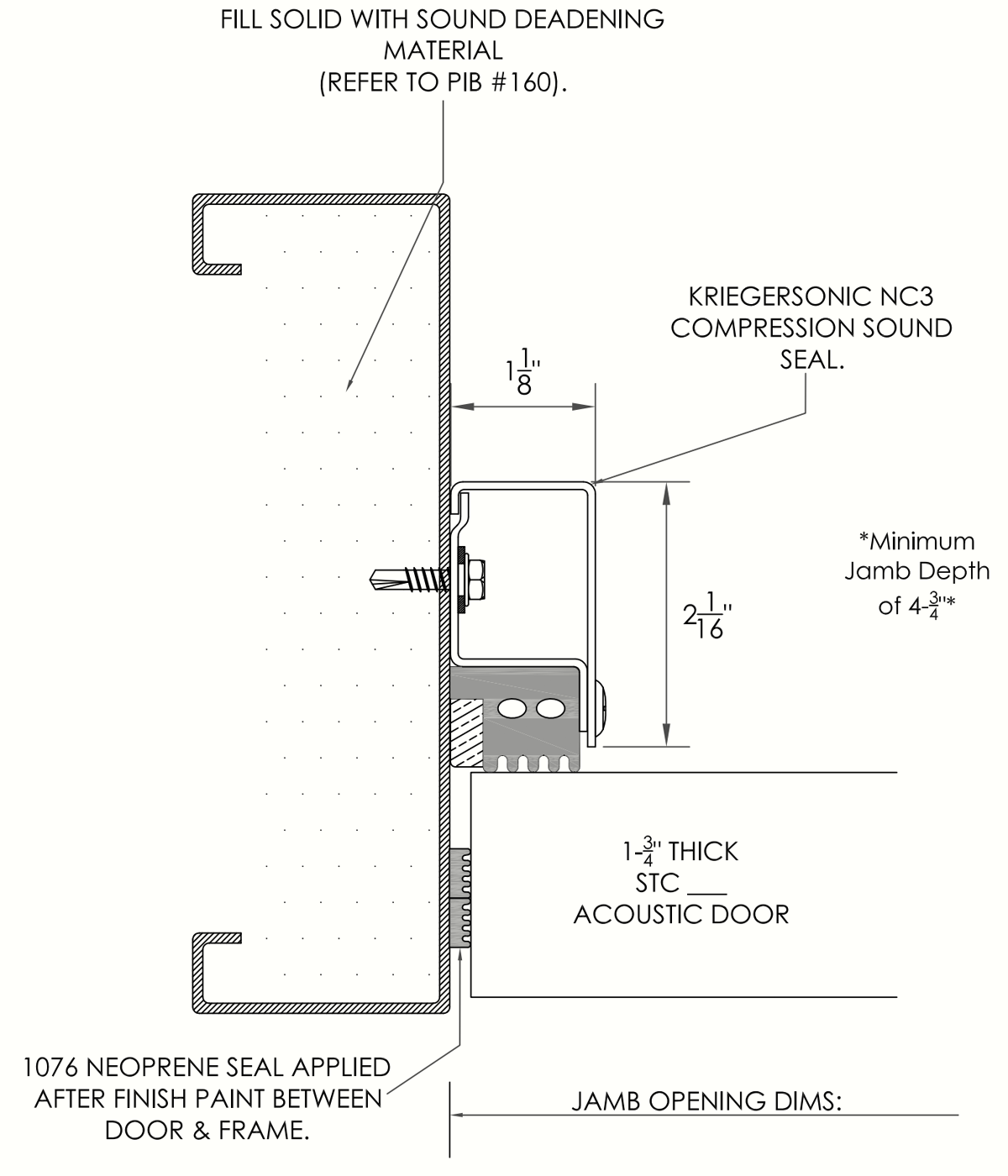

Compression Seal
Frame Detail
Frame Detail
Automatic Door Bottom
with Threshold Detail
with Threshold Detail
Dual Glazed
Vision Lite Detail
Vision Lite Detail
NOTES
Doors tested are flush design and 1-3/4" thick.
1. Noise Control Seals and Astragals are KriegerSonic® proprietary design.
2. Hinge type shown on tested door. STD = standard mortise butt hinge. Cam lift hinges are KriegerSonic® proprietary design and are furnished with the door assembly. Cam lift hinges will increase the force required to fully operate a door, this should be considered for facilities with handicap codes.
3. Doors are available with up to 3 hour U/L label. We also offer positive pressure tests in accordance with Standards: U/L 10C and UBC 7-2 and 7-4.
1. Noise Control Seals and Astragals are KriegerSonic® proprietary design.
2. Hinge type shown on tested door. STD = standard mortise butt hinge. Cam lift hinges are KriegerSonic® proprietary design and are furnished with the door assembly. Cam lift hinges will increase the force required to fully operate a door, this should be considered for facilities with handicap codes.
3. Doors are available with up to 3 hour U/L label. We also offer positive pressure tests in accordance with Standards: U/L 10C and UBC 7-2 and 7-4.
THIS IS A PRE-ENGINEERED MODEL. WE CUSTOM MANUFACTURE TO YOUR ACTUAL NEEDS.
