KriegerSonic
NC6-15-8944
STC Rating
44
Seal
1
NC6
Recommeded Max. V/L Area
300 SQ. IN.
Threshold
ALUM. or S.S.
Weight
10.2
U/L Label
3
BCDE
Hinges
2
Cam Lift
Specifications
TEST REPORT DATA
Report
100
125
160
200
250
315
400
500
630
800
1000
1250
1600
2000
2500
3150
4000
5000
TL89-246
29 38 38 40 43 42 42 44 48 48 48 44 40 42 45 47 49 52
CAD DRAWINGS
Magnetic Seal
Frame Detail
Cam Lift Door Bottom
with Threshold Detail

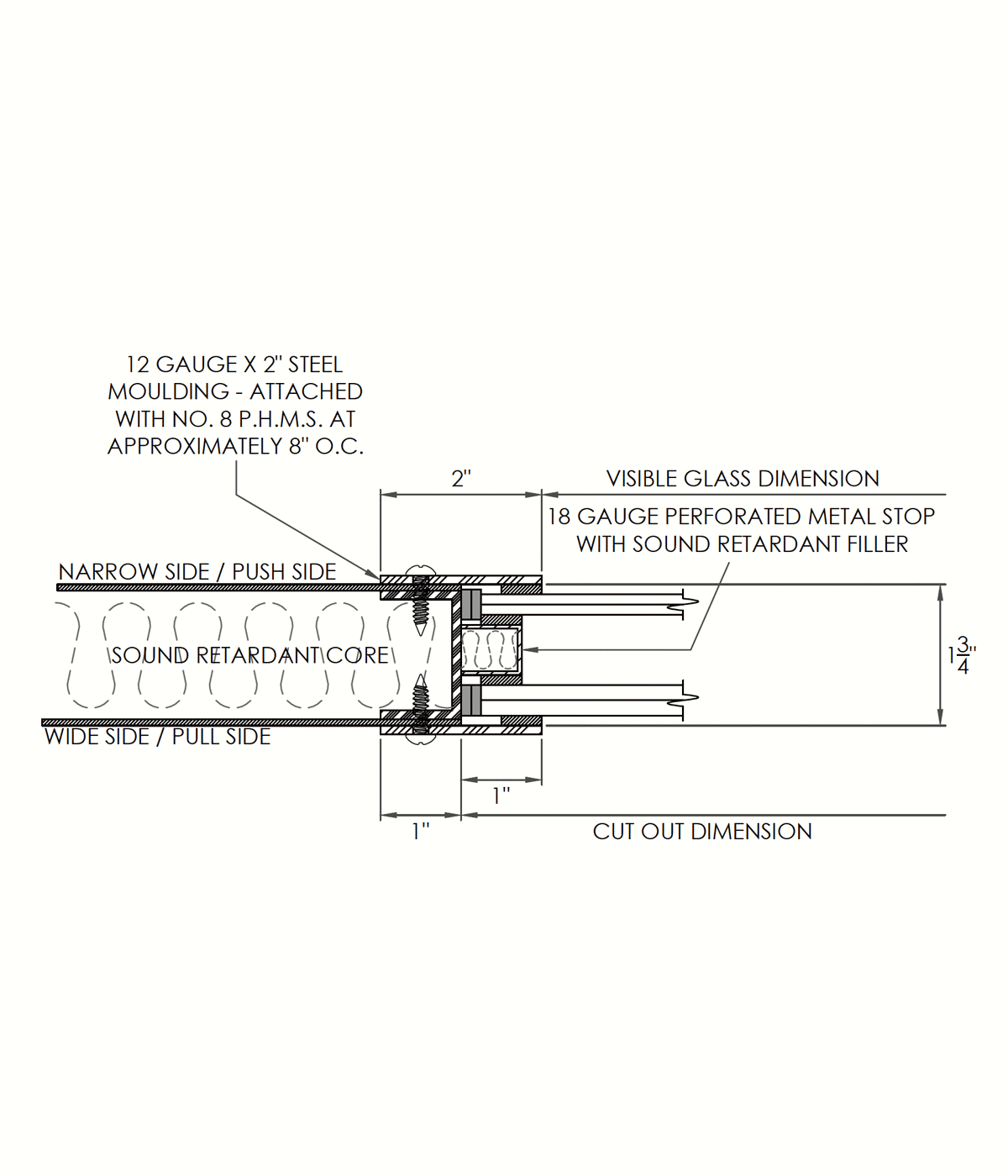

Dual Glazed Vision
Lite Detail
NOTES
Doors tested are flush design and 1-3/4" thick.

1. Noise Control Seals and Astragals are KriegerSonic® proprietary design.

2. Hinge type shown on tested door. STD = standard mortise butt hinge. Cam lift hinges are KriegerSonic® proprietary design and are furnished with the door assembly. Cam lift hinges will increase the force required to fully operate a door, this should be considered for facilities with handicap codes.

3. Doors are available with up to 3 hour U/L label. We also offer positive pressure tests in accordance with Standards: U/L 10C and UBC 7-2 and 7-4.
THIS IS A PRE-ENGINEERED MODEL. WE CUSTOM MANUFACTURE TO YOUR ACTUAL NEEDS.
If you have questions please call us at 562-695-0645
Made in the USA
